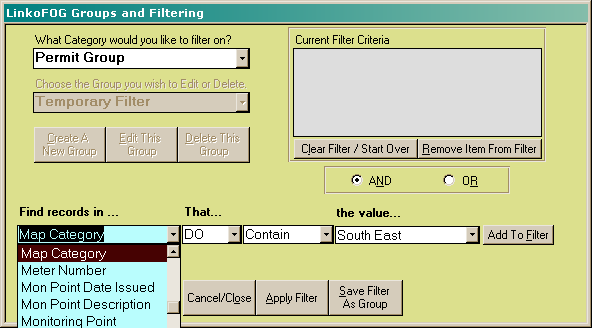

Using the Group and Filter Form

Click on the Group/Filter button to open the filter form and then click on Create New Group. Filter options become available to you.

§  Simply click on the “Find Records In” combo box and choose from the list of fields available to filter on. The fields in the list match the fields visible on the screen you are filtering for.

§  Choose from the options available to you in the combo boxes to your right.  Pay particular attention to the Value Option.  In most cases the Value box is automatically loaded with all of the values from the “Find Records in...“ drop-down box.

§  You can use these items or you can type in whatever meets your filtering needs.

§  Also if you are selecting a date range you will notice that you can double click on the Values combo box to open a calendar.

§  Finally click on Add to Filter

Apply Filter

Now that you have Criteria in the “Current Filter Criteria” you can either apply the filter to Facility Groups screen or Save it.  Applying the filter criteria does not save it, but it will apply it to the screen.  Using the Apply feature to review the information that has been filtered on Facilities you to see if you want to save the filter as a Group.  If you get the results that you want from the filter you can click on the Groups/Filter button again and save the Filter.

Save Filter

Saving the filter criteria is as simple as applying it.  Once you have added your filter criteria to the “Current Filter Criteria” box, Click on the Save button.  You will be prompted to give this filter a name.  It is important to be descriptive but short with your filter name because you will be able to use it over and over again throughout the software program.

Item

Description

Category to Filter on

Indicates the type of group that you will be filtering on.  Categories are not modifiable.  Each Category may have several “Groups” Associated with it.

Group to Edit or Delete

Displays the Group Options for the Category you have selected.  These are the groups that you can edit and add to.

Create a New Group

Clears the Current Filter Criteria and sets up the form to create a new group

Edit This Group

Put the screen in edit mode allowing you to add or remove items from the Current Filter.

Delete This Group

Deletes the selected group and removes it from the database.

Current Filter Criteria

Only what is displayed in the Current Filter Selection will be Applied or Saved.  This shows information about the filter criteria you are building while you are building it.

Find Records in…

Use this field to select the Field that you would like to search on. Every field that is visible on the screen that you are coming from will be displayed in this list.  Depending on what screen you are coming from i.e. Events, Violations, Facility Groups, you will have different options to select.  If you do not see a field in this list, be sure it is visible on the List View screen beneath it.

That…

Use these items for narrowing down your search criteria.   Take a moment to get a feel for these options.    Your options are Do, Do Not, Is, Equal to, Greater Than, Less Than, Starts with, Ends with and Contains.

The Value

Displays all of the values for the field that you chose in the “Find Records in…”  Users can easily choose a value to filter on or type what they want to filter on.  In the case of searching for a Date Range Users can double click on the Combo Box to bring up the Calendar.

Add To Filter

Add to Filter will add what you have entered into the combo box selections to the filter.  You can later Apply or Save that filter to the list view screen.

Cancel/Close

Will close the screen without applying the filter

Apply Filter

Will Apply the filter that is in the “Current Filter Box” without saving the group.  After you click this button, you will notice that your filter is applied to the Group named “Temporary Filter”.  The filter stays temporary until you save it.  The “Temporary Filter” is deleted if you leave the List View screen without saving it.

Note:  When using Save Filter or Apply filter all of the filter information must be moved to the “Current Filter Selection” box to be applied.

Save Filter as Group

Save your filter and searching criteria to an existing group or a new one. Click on the Save button and type in the name that you want to call your Group and click on the OK button.  Be descriptive when naming your groups they may be used in other parts of the program.  Avoid long names with:  , ‘ & * $ % @ !

Clear Filter/Start over

Removes all of the contents from the “Current Filter Selection”

Remove Item From Filter

Removes only the selected items from the “Current Filter Selection”

And & OR

These are filtering expressions to limit or expand your search.  These can be tricky but if you hover over either one, a more detail explanation is displayed in a pop up text box.  Follow these guidelines when using AND or OR:

And – Limits your search so that ALL of the criteria that you have in the Current Filter Selection must be met.  Such as:

Classification Starts with C And

Permit Active equals YES

This will return only the Facilities with a Classification that Starts with C and that are currently Active. Both of the Conditions must be met for the Industry to be included in the returned information.

OR – Expand your search so that ANY of the criteria that you have in the Current Filter Criteria box  must be met

Classification Starts with C Or

Permit Active equals YES

This will return the Facilities that have a Classification that Starts with C or that are currently Active.  If an Industry meets Either of the two conditions it will be included in the returned information.
